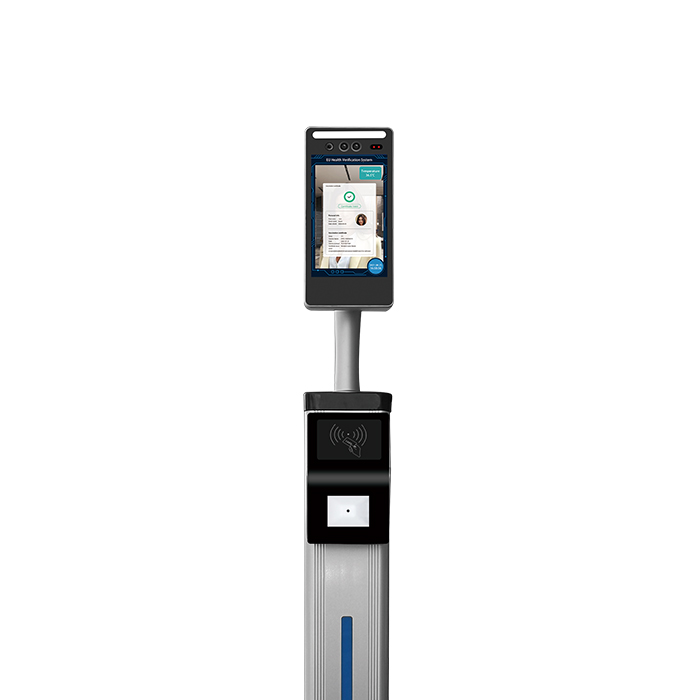

eu health green pass code verification system-凯发k8官方

production description

◆the embedded linux operating system has an overwhelming advantage in reliability and stability compared with android

◆support output real-time video stream to other devices, integrated face capture, comparison and identification, infrared temperature measurement functions

◆support european health code information verification function

◆ abnormal temperature alarm: non-contact frontal temperature detection within one second, temperature measurement distance 30-70cm, temperature measurement error range ±0.5℃, abnormal temperature linkage external sound and light alarm

◆ industrial design, adjustable pitch angle, left and right rotation

◆ support in vivo detection, effectively prevent photos, videos and other deception

◆ using deep learning algorithm, face database of 10,000

◆ flexible face template import, support single, batch image file import and real-time capture import

◆ face types such as visitors, whitelists, and blacklists are supported

◆ support linkage output of recognition results and voice broadcast

◆ it can be widely used in access control channels, wall hanging attendance and temperature measurement screening and other scenarios

◆support check whether the health code is valid

technical parameter

model	few6133f01b
model	few6133f01b
screen
size	7 inch, full-angle ips lcd screen
resolution	1280x800
camera
type	design of double camera
sensor	1/2.8" cmos
resolution	1080p@30fps
lens	6mm*2
temperature detection
detect area	forehead
temperature environment	0-30℃(advice 16-30℃)
scope of detection	34-42℃
temperature distance	30-70cm
error range	±0.5℃
temperature response	≤1s
face recognition
detection type	support lving face detection, effective prevention of print photos, phone photos and video spoofing
face detection number	0.5-2m, support detection target size filter adjustment
recognition face size	pupils distance ≥ 60 pixels; face pixel ≥150 pixels
face database capacity	support built-in ≤ 10000 faces（2w face library optional）; support black/white list
posture	support side face filter function, pitching 20°, about 20° can be comparable
shelter	recognizable with ordinaryglasses and short bangs hair
helmet testing	support
mask wearing test	support
expression	recognizable with slight expression
response speed	≤1s
face exposure	support
local storage	support storage of more than 100,000 capture and recognition records
recognition area	recognition area full image
upload mode	ftp、http、api calling upload
safe mode	authorized user name and password
system upgrade	support remote upgrade
other	/
function
network protocol	ipv4，tcp/ip，ntp，ftp，http ，smtp
access protocol	rtsp
safe mode	authorized user name and password
event linkage	ftp upload, alarm output linkage, wiegand output linkage, voice broadcast


accessories
complementary light	ir light, led white light
health code verification	support eurohealth code verification, code brush status temperature information
recognition module	support ic card recognize module optional
loudspeaker	support voice broadcast after successful recognition
network module	support built-in wifi module optional
interface
network interface	rj45 10m/100m network adaptative
alarm output	2ch
wiegand input	support
rs485	support
tf card	max.support 128g local-storage
usb	1ch
wiegand interface	support wiegand 26,34 protocol
reset	support
sim slot	support
general
operating temperature	-20°c ~ 55°c(temperature measurement environment 0-30℃, recommended 16-30℃)
operating humidity	0﹪-90﹪
power supply	dc12v
power consumption (max)	≤13w
dimensions(mm)	368.2mm(h)*120mm(w)
weight /pcs(g)	tbd
